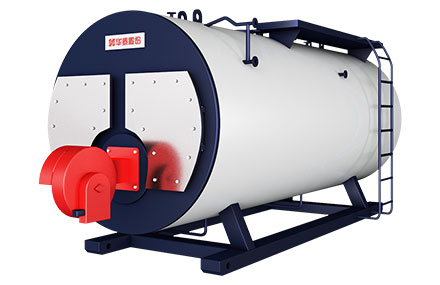

WNS Series Oil/Gas-Fired Steam Boiler

  • thermal capacity: 1-20 ton/h
  • Rated thermal efficiency: 97-100%
  • Pressure: 1-1.6Mpa
  • Available fuel: natural gas liquefied gas biogas gas light oil heavy oil etc
  • Available industries: food beverage feed mill textile mill paper mill packaged refinery chemical pharmaceutical and so on.

Product introduction

1ton/2ton/8ton/10ton steam boiler

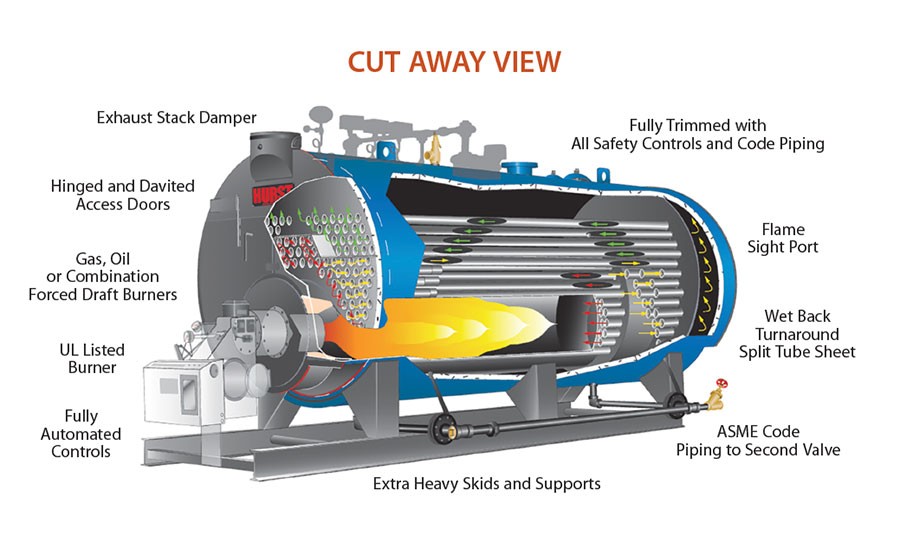

WNS series 1ton/2ton/3ton/6ton/8ton/10ton/15ton/20ton steam boiler, low NOx emission, condensation integrated steam boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet back structure, it can adapt to high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

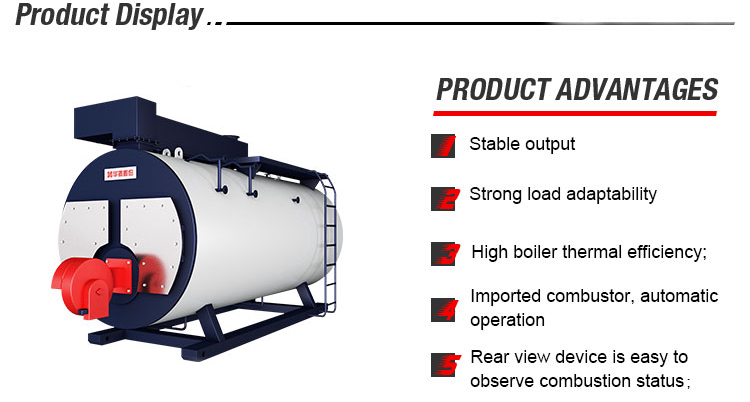

Production advantage

• Energy saver, condenser and boiler structure can fully absorb the flue gas preheating and gasification latent heat,the thermal efficiency is 10% higher than the ordinary boiler.



• Adopt top level PLC automatic intelligent control cabinet and interlock protection program,which can effectively prevent water shortage, over pressure, over temperature, gas leakage, flame out and so on.



• Condenser adopts ND steel, which is characterized by its cost-effective,heat-resistant and corrosion-resistant performances.



• Condensing oil/gas fired boiler adopts horizontal flue gas three-pass integrated low resistance design with national invention patent technology, which facilitates a super high thermal efficiency, small floor area.



• Adopt corrugated furnace tank and threaded smoke pipe structure which not only increases the radiation and convection heat transfer area, but also satisfies the needs of the free expansion of high temperature radiation.




Technical parameter

Model WNS1-1-Y(Q) WNS2-1.25-Y(Q) WNS3-1.25-Y(Q) WNS4-1.25-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q) WNS15-1.25-Y(Q) WNS20-1.25-Y(Q)
Rated evaporation capacity (T / h) 1 2 3 4 6 8 10 15 20
Rated working pressure (MPA) 1 1.25 1.25 1.25 1.25 1.25 1.25/1.6 1.25/1.6 1.25/1.6
Rated steam temperature (℃) 184 193 193 193 193 193 193/204 193/204 193/204
Boiler efficiency (oil / gas) (%) 97-100 97-100 97-100 97-100 97-100 97-100 97-100 97-100 97-100
Rated feed water temperature (℃) 20 20 20 20 20 20 20 20 20
Power requirements (V / Hz) 380/50 380/50 380/50 380/50 380/50 380/50 380/50 380/50 380/50
Electric power (gas / fuel) kw 3/3 6/6 11/9.5 13/11 24/24 37/31 33/33 56/70 70/70
